Smoothflow TOUCH™ Fume Cupboard

Product Features

  • Customisable materials & technology
  • Efficient & user friendly
  • Solid state electronic control system with real time air monitoring
  • Fire retardant polypropylene internal construction
  • Optional stainless steel inner chamber
  • Trespa Top Lab Plus
  • Choice of sump or fixed base
  • Constant volume or variable volume standard
  • Scrubber units for use with inorganic acids
  • Range of services available
  • Walk-in variations available
  • Optional Autosash automatic sash lowering technology available

Description

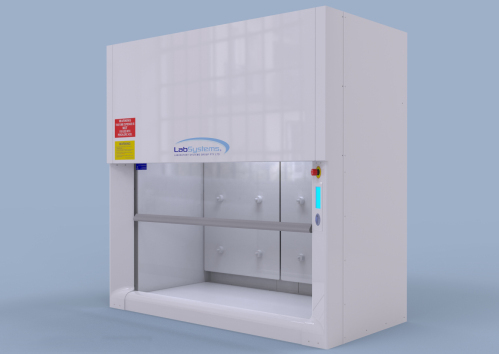

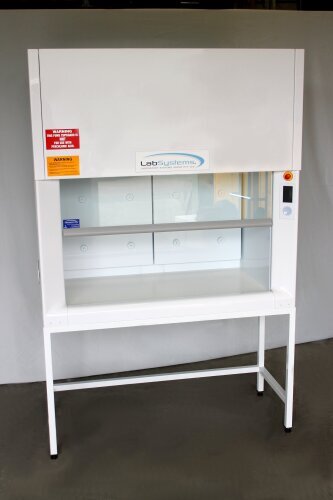

The Smoothflow TOUCH™ Ducted Fume Cupboard is the perfect solution for operator protection from chemicals and contaminants used in your laboratory applications. The result of over 30 years development, the Smoothflow TOUCH™ fume cupboard can provide users with flexibility of design, the highest level efficiency and a user-friendly interface. Laboratory Systems Group have worked hard to listen to the requirements of our customers - creating a design based on industry demand, and manufactured using the highest quality materials and latest technology from around the world.

Our Smoothflow fume cupboards can be customised to suit your requirements, and our experts can assist you in selecting sizing, materials and services best suited for your application. The TOUCH™ Safety Control System provides a state of the art touch pad control panel that electronically controls all functions with ease and can be programmed to meet your requirements. The Smoothflow TOUCH™ fume cupboard now features optional automatic sash lowering technology - providing extra safety and savings on energy consumption and related costs. All Smoothflow ducted fume cupboards exceed the requirements of Australian Standard AS/NZS 2243.8:2006 Safety in laboratories - Fume cupboards and meet international standards such as ASHRAE, OSHA and European Standards. Our fume cupboards are rigorously tested prior to delivery and commissioned upon installed by our NATA/ISO 17025 accredited technicians.

Documents for Download

Specifications

DIMENSIONS 1200 1500 1800 2000 2400
EXTERNAL WIDTH (mm) 1200 1500 1800 2000 2400
EXTERNAL DEPTH (mm) 750 750 750 750 750
EXTERNAL HEIGHT (mm) 1500 1500 1500 1500 1500
MAXIMUM SASH HEIGHT (mm) 650 650 650 650 650
NOMINAL VOLUME AT 0.5m/s 305 L/sec 403 L/sec 500 L/sec 567 L/sec 695 L/sec
NOMINAL WEIGHT kg 100 130 150 166 185
