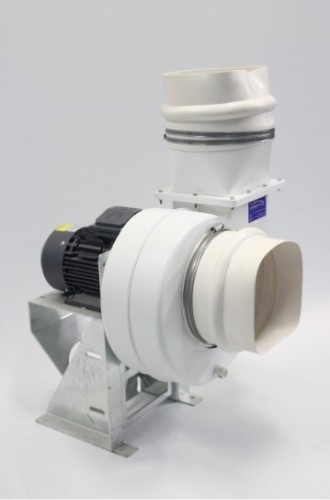

Plastic PolyFan VSB25
Product Features
- Polypropylene Casing and Impellor
- Rigid polymer frame for years of corrosion-free operation
- IP-56 Rated motor to suit application
- Polyurethane Inlet and outlet flexibles with Stainless Steel bands supplied as standard
- Case can be rotated to exhaust at any of eight positions
- Available in Left-hand and Right-Hand orientation
Description
The Laboratory Systems Group range of polyfans are specifically engineered to suit high volume ventilation applications. Constructed from premium quality materials, the VSB-series polyfan range incorporate a highly corrosive-resistant fully metal-free casing with a high efficiency fully balanced impellor.
Available in a range of sizes to meet a wide range of applications.
Documents for Download
Polyfan-VSB25-1706.pdf (787kB)
Specifications
| DIMENSIONS | VSB25 |
| Inlet/Outlet Diameter (mm) | 250 |
| Height (Approx mm) | 800 |
| Width (Approx mm) | 520 |
| Depth (Approx mm) | 530 |
| Weight (Approx kg) | 36 |
