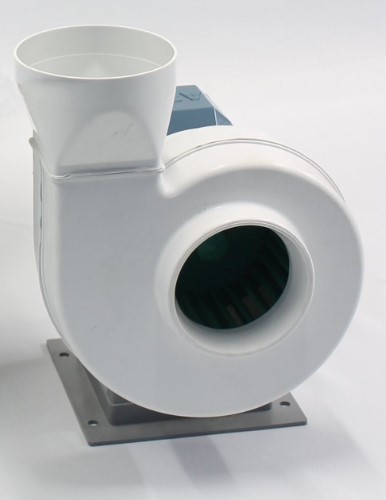

Plastic PolyFan VSB14

Plastic PolyFan VSB14

Product Features

  • Polypropylene Casing and Impellor
  • Rigid polymer frame for years of corrosion-free operation
  • IP-56 Rated motor to suit application
  • Polyurethane Inlet and outlet flexibles with Stainless Steel bands supplied as standard
  • Case can be rotated to exhaust at any of eight positions
  • Available in Right-Hand orientation only

Description

The Laboratory Systems Group range of polyfans are specifically engineered to suit high volume ventilation applications. Constructed from  premium quality materials, the VSB-series polyfan range incorporate a highly    corrosive-resistant fully metal-free casing with a high efficiency fully balanced impellor.

Available  in  a  range of sizes to meet a wide range of applications.

Documents for Download

Specifications

DIMENSIONS VSB14
Inlet/Outlet Diameter (mm) 122
Height (Approx mm) 380
Width (Approx mm) 320
Depth (Approx mm) 320
Weight (Approx kg) 7.0
