SafeGuard™ Ductless Fume Cupboard

Uses

Operator Protection
Process Protection
Sample Protection
Environmental Protection
Service Protection

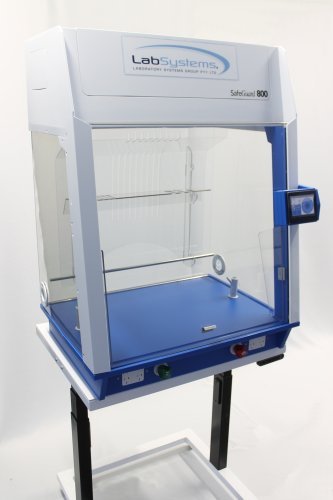

SafeGuard™ Ductless Fume Cupboard

Product Features

  • Ductless design
  • Designed & Made in Australia
  • Customisable to suit your application
  • Efficient LED lighting
  • Carbon filtration to suit large range of chemicals
  • Compact & modern for smaller laboratories & classrooms
  • Minimal installation – will plug directly into standard 240V 10AMP electrical outlet
  • Internal baffle for uniform airflow
  • Features operator safety controller
  • Low airflow, gas & filter replacement alarm
  • Electrics & filters located above work surface
  • Deep base for isolation of accidental spills
  • Corrosion proof, polypropylene construction
  • Lighter than traditional metal units
  • Standard scaffold lugs, rails & cord ports
  • Exceeds requirements of AS/NZS 2243.9

Description

The SafeGuard™ ductless fume cupboard offers laboratories a portable, economical and environmentally friendly fume cabinet; protecting the operator from toxic gases, noxious fumes and particulates. Designed and manufactured here in Australia, the SafeGuard™ requires no ductwork and minimal installation—ideal for classroom environments and small laboratories. With a compact, modern design, the SafeGuard™ filtered fume cabinet is available in multiple sizes and features a variety of options to suit your needs.

With your safety in mind, the SafeGuard™ ductless fume cupboard features all filters and electrics above the work surface, eliminating risk of damage due to chemical spillage. Accidental spills are effectively contained within the liquid tight base, without deducting from the workspace. To ensure safe operation, a low airflow, gas and filter replacement alarm signal the user when necessary. Laboratory Systems Group’s SafeGuard™ ductless fume cupboard exceeds requirements of AS/NZS 2243.9 Safety in laboratories – Recirculating fume cabinets, and our Service Department can assist you with ongoing maintenance, testing and filter changes as required. Each application is individually assessed by Laboratory Systems Group for the safety of you and your laboratory.a

Documents for Download

Specifications

DIMENSIONS SafeGuardTM SG800 SafeGuardTM SG1200
HEIGHT - EXTERNAL (mm) 980
*19090
990
* 1090
HEIGHT - INTERNAL (mm) 685 680
WIDTH - EXTERNAL (mm) 820 1200
WIDTH - INTERNAL (mm) 780 1140
DEPTH - EXTERNAL (mm) 650 600
DEPTH - INTERNAL (mm) 575 500
