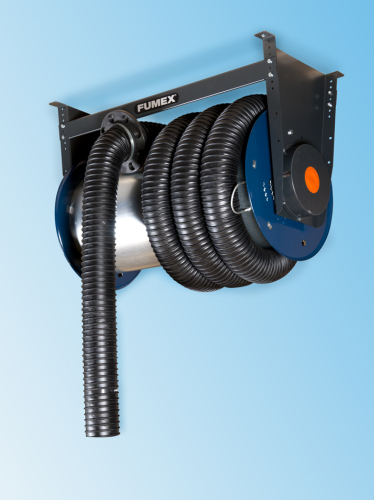

Fumex ASR & ASRM Vehicle Hose Reels

Fumex ASR & ASRM Vehicle Hose Reels

Product Features

  • Available in sizes for most vehicle types – three hose widths available
  • Made of powder-coated durable sheet steel
  • Standard brackets for ceiling, wall & floor mounting
  • EPDM hose reshapes after compression
  • Hose diameters 75, 100, 125 or 150mm
  • Standard length 5m
  • Longer hoses are available in multiples of 2.5m
  • -40 degrees Celsius to +170 degrees Celsius
  • Connection to a separate fan or central extraction system
  • Multiple accessories available including external switches for automatic start/stop of a fan, automatic damper, etc., oval rubber nozzle, clip on nozzle & more


The Fumex ASR and ASRM mechanical and motor-driven exhaust hose reels are ideal for worksites with stationary vehicles. Fumex provides a handy solution for work with stationary vehicles, where the hoses are out of the way when the extractor is not in use. The ASR/ASRM is available in sizes to match and handle most types of vehicles. The ASR features a mechanical spring return, whilst the ASRM features a hose reel with motor return (suitable for use with high ceilings and longer hoses). The hose reels are made in powder coated steel and sheet steel. The ASR standard brackets allow for ceiling, wall or floor mounting.
